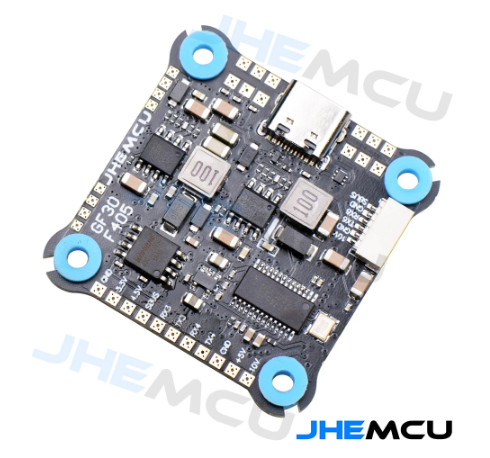

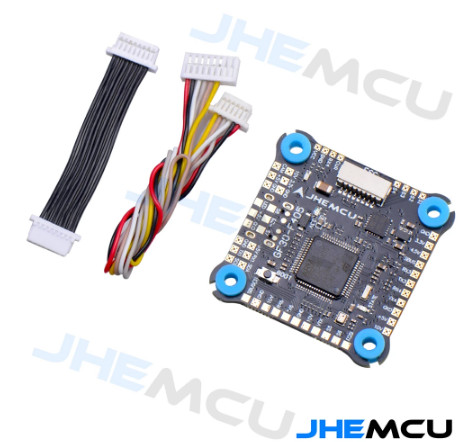

JHEMCU GF30-F405 F405 Flight Controller MPU6000 5V 10V BEC OSD Baro 16MB BlackBox 3-8S 30.5X30.5mm for FPV Freestyle Drones

JHEMCU GF30-F405 F405 Flight Controller MPU6000 5V 10V BEC OSD Baro 16MB BlackBox 3-8S 30.5X30.5mm for FPV Freestyle Drones
  • JHEMCU GF30-F405 F405 Flight Controller MPU6000 5V 10V BEC OSD Baro 16MB BlackBox 3-8S 30.5X30.5mm for FPV Freestyle Drones
  • JHEMCU GF30-F405 F405 Flight Controller MPU6000 5V 10V BEC OSD Baro 16MB BlackBox 3-8S 30.5X30.5mm for FPV Freestyle Drones

JHEMCU GF30-F405 F405 Flight Controller MPU6000 5V 10V BEC OSD Baro 16MB BlackBox 3-8S 30.5X30.5mm for FPV Freestyle Drones


  • Product No.: 202111992255

Details

 CPU: STM32F405RGT6
· Power supply: 3-8S (11V-36V)
· Signal protocol: PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600.
· Sensor: MPU6000
· Size: 36*36mm (30.5mm mounting hole, diameter 4MM)
· Firmware version: Betaflight JHEF405pro
· Black box: 16MB
· Barometer: BMP280
· OSD: Support
· DJI VTX: reserved interface and wiring (10V output)
· USB: TYPE-C interface
· IIC: Support
· UART: 4 channels, UART1, 3, 4, 6, among which UART3 is the receiver
· BEC: BEC 5V/2.5A and 10V/2A
· Receiver: SBUS, IBUS, DSM2/X, TBS, CRSF, etc.
· Support WS2812 programmable LED
· Support buzzer
· Built-in voltage sensor with current detection port
· Weight: 8.8 grams
