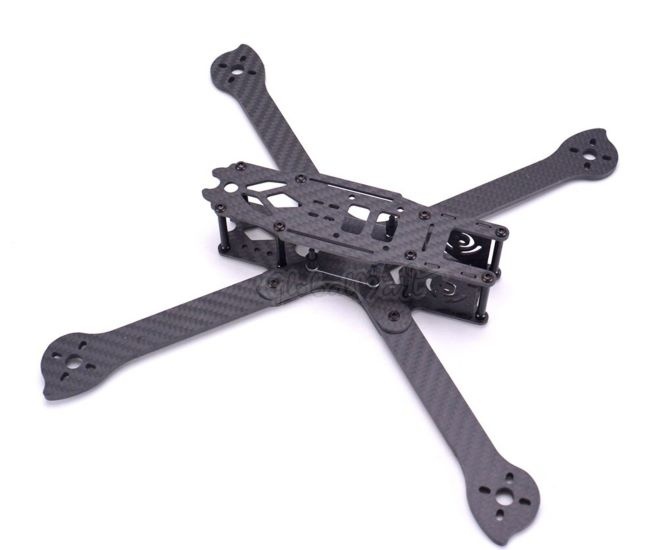

3K Full Carbon Fiber TrueX XL5 V2 232mm XL6 V2 283mm / XL7 V2 294mm / XL8 V2 360mm XL9 V2 390mm Arm 4mm Freestyle Frame for FPV

3K Full Carbon Fiber TrueX XL5 V2 232mm XL6 V2 283mm / XL7 V2 294mm / XL8 V2 360mm XL9 V2 390mm Arm 4mm Freestyle Frame for FPV
  • 3K Full Carbon Fiber TrueX XL5 V2 232mm XL6 V2 283mm / XL7 V2 294mm / XL8 V2 360mm XL9 V2 390mm Arm 4mm Freestyle Frame for FPV
  • 3K Full Carbon Fiber TrueX XL5 V2 232mm XL6 V2 283mm / XL7 V2 294mm / XL8 V2 360mm XL9 V2 390mm Arm 4mm Freestyle Frame for FPV

3K Full Carbon Fiber TrueX XL5 V2 232mm XL6 V2 283mm / XL7 V2 294mm / XL8 V2 360mm XL9 V2 390mm Arm 4mm Freestyle Frame for FPV


  • Product No.: 2023910162717

Details

 3K Full Carbon Fiber TrueX XL5 V2 232mm XL6 V2 283mm / XL7 V2 294mm / XL8 V2 360mm XL9 V2 390mm Arm 4mm Freestyle Frame for FPV


XL5 5 inch 232mm FPV Freestyle Frame Kit


Features:

- Top mounted battery for optimal CG

- True X frame design

- Replaceable 4mm arms and plates

- High quality 3K full carbon

- 7075 T10 high quality screw hardware

- Compact design


Specifications:

- Type: 5" Freestyle frame

- 4mm arms, 2mm top plate / Bottom plate

- Motor to Motor Size:232mm

- Weight: 115.6g

- Carries: 1300-1500mAh lipo + GoPro Session


XL6 6 inch 283mm FPV Freestyle Frame Kit


Features:

- Top mounted battery for optimal CG

- Replaceable 4mm arms and plates

- High quality 3K full carbon

- 12.9 class nickel palted high quality screw hardware

- Compact design

- Compatible with gorpo size camera gimbal



Specifications:

- Type: 6" Freestyle frame

- 4mm arms

- 2mm top plate / bottom plate

- Motor to Motor Size:283mm

- Weight : 126.9g

- M3x30mm standoff

- 30to 80ratcheting camera angle adjustment




XL7 7 inch 294mm FPV Freestyle Frame Kit


Features:

- Top mounted battery for optimal CG

- True X frame design

- Replaceable 4mm arms and plates

- High quality 3K full carbon

- 7075 T10 high quality screw hardware

- Compact design


Specifications:

- Type: 7" Freestyle frame

- 4mm arms,2mm top plate / Bottom plate

- Motor to Motor Size:294mm

- Weight : 128.3g

- Carries: 1300-1500mAh lipo + GoPro Session


XL8 8 inch 360mm FPV Freestyle Frame Kit


Features:

- Top mounted battery for optimal CG

- True X frame design

- Replaceable 4mm arms and plates

- High quality 3K full carbon

- 7075 T10 high quality screw hardware

- Compact design


Specifications:

- Type: 8" Freestyle frame

- 4mm arms,2mm top plate / Bottom plate

- Motor to Motor Size: 360mm

- Weight : 143.3g

- Carries: 1300-1500mAh lipo + GoPro Session



XL9 9Inch 390mm FPV Freestyle Frame Kit

Features:





- Top mounted battery for optimal CG


- True X frame design


- Replaceable 4mm arms and plates


- High quality 3K full carbon


- 7075 T10 high quality screw hardware


- Compact design





Specifications:

- Type: 9" Freestyle frame


- 4mm arms,2mm top plate / Bottom plate


- Motor to Motor Size: 390mm



- Carries: 1300-1500mAh lipo + GoPro Session



Package Included:


1 x XL5 232mm / XL6 283mm / XL7 294mm / XL8 360mm / XL9 390mm Frame Kit ( Send it as your choice)
