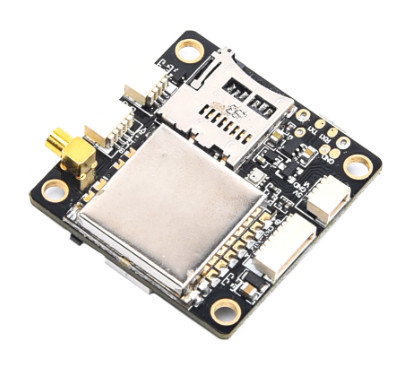

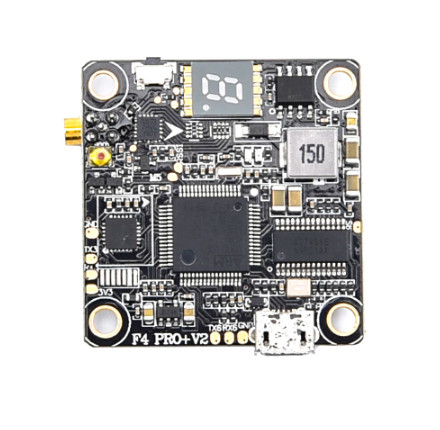

F4 Pro V2 F4 Flight Controller OSD BEC AIO 40CH 25/200/600/800mW VTX 30.5x30.5mm for FPV Racing Drone
F4 Pro V2 30.5x30.5mm Omnibus F4 Flight Controller OSD BEC AIO 40CH 25/200/600/800mW VTX
Specification:
Model: F4 Pro + V2
Size: 36x36mm
Mounting Hole: 30.5 x 30.5mm
Net Weight: 13g
Omnibus F4 Flight Controller
Processor: STM32F405
Gyroscope: MPU6000( reserved external gyroscope interface )
Firmware: BetaFlihgt 3.2.0 OMNIBUSF4SD
Input Voltage: 2 - 6s LiPo support
BEC Output: 5V 3A
Support Receiver: PPM, SBUS, IBUS, DSM2/DSMX Receiver ( UART1 )
- Integrated with OSD, support BF Ground Station adjust OSD
Adjust the PID by OSD via remote control
Support Dshot
Support SmartAudio, adjust the VTX by OSD ( UART3 )
- MicroSD card blackbox
- MicroSD card blackbox
- Baro (BMP280)
5.8G 40CH 25/200/600/800mW FPV Transmitter
Frequency: 5362 - 5945MHz
Video Format: NTSC / PAL
Transmitting Power: 25 / 200 / 600 / 800mW switchable
Operating Voltage: DC 7 - 24V
Output voltage: 5V / 450mA
Working Current: 240mA @ 25mW
340mA @ 200mW
520mA @ 600mW
600mA @ 800mW
340mA @ 200mW
520mA @ 600mW
600mA @ 800mW
Transmission Distance: 200m @ 25mW
2KM @ 200mW
4KM @ 600mW
6KM @ 800mW
2KM @ 200mW
4KM @ 600mW
6KM @ 800mW
Remote Software protocol: SmartAudio V2.0
Audio Bandwidth: 6.5MHz
Video Bandwidth: 18MHz
Channel: 40CH
Range: Up to 4km omnidirectional RHCP antenna
Connector: MMCX
Frequency Table:
|
Channel |
1 |
2 |
3 |
4 |
5 |
6 |
7 |
8 |
|
Band A |
5865
|
5845
|
5825
|
5805
|
5785
|
5765
|
5745
|
5725
|
|
Band B |
5733
|
5752
|
5771
|
5790
|
5809
|
5828
|
5847
|
5866
|
|
Band E |
5705
|
5685
|
5665
|
5645
|
5885
|
5905
|
5925
|
5945
|
|
Airwire |
5740
|
5760
|
5780
|
5800
|
5820
|
5840
|
5860
|
5880
|
|
Race Band |
5658
|
5695
|
5732
|
5769
|
5806
|
5843
|
5880
|
5917
|
|
LowRace Band |
5621 |
5584 |
5547 |
5510 |
5473 |
5436 |
5399 |
5362 |
