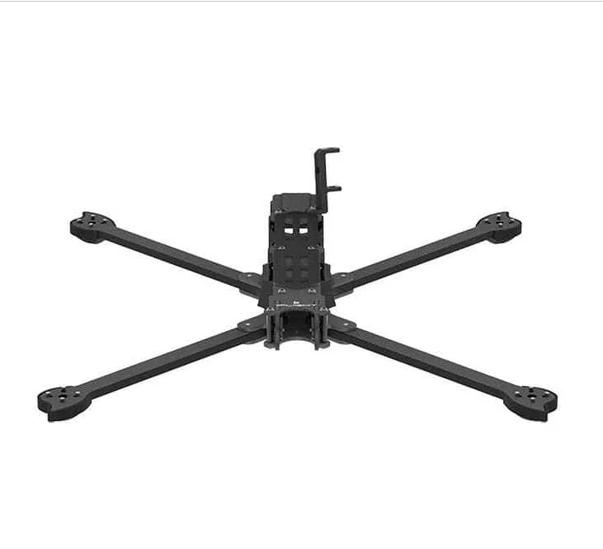

iFlight Chimera CX10 10" Frame Kit
Description
iFlight is proud to announce the release of the CX10 Frame. The CX10 is a 10" size quadcopter, and will fit the DJI O3 Air Unit system or Caddx Digital FPV system on it.
Features
- 30.5x30.5mm, 25x25mm, or 20x20mm for almost any VTX mounting
- 16x16mm or 19x19mm Motor Mounting
- 6mm Arm Thickness
Specifications
- Product Name:452mm Wheelbase 10 inch Frame Kit
- Wheelbase: 452mm
- Frame Dimension: L338xW299xH34mm
- Arm Thickness: 6mm
- Bottom Plate Thickness: 3mm
- Top Plate Thickness: 2mm
- Upper Plate Thickness: 3mm
- Maximum Flight Stack Height: 21mm
- Max VTX Height: 30mm
- Flight Stack Mounting: 30.5x30.5mm φ3mm
- VTX Mounting:20x20 Φ2mm/ 25.5x25.5 Φ1.6mm/ 30.5x30.5 Φ3mm
- Motor Mounting:16x16mm/19x19mm Φ3mm
- Weight: 383g
Includes
- 1x iFlight Chimera CX10 Frame Kit
- 1x TPU Set
- 1x Screw Bag
- 1x Anti-Slip Battery Pad
- 2x Battery Strap
- 4x AMASS MR30 Plugs
