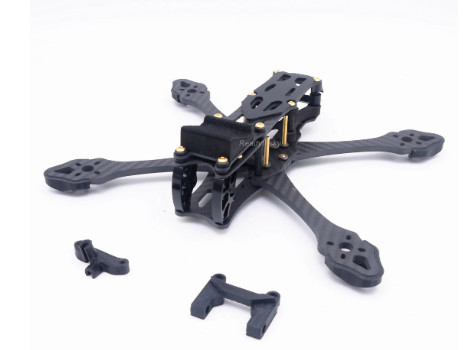

StrechX 5inch 223mm / 6inch 258mm / 7inch 296mm FPV Carbon Fiber Frame Quadcopter for 20*20m / 30.5*30.5mm FC BN-220 GPS FPV KIT
StrechX 223MM 5inch Frame
1. Wheelbase: 223mm
2. Structure: X-type split
3. Weight: 152G
4. Thickness: bottom plate 3.0mm, X plate 3.0mm, machine arm 5.0mm, other accessories 2.0mm
5. Paddle: 5.0 inch paddle
6. Flight control hole distance: 20*20mm, 30.5*30.5mm
7. The distance between the rear image transmission holes: 20*20mm, 30.5*30.5mm
8. Camera installation width: 20mm/23mm
9. Motor mounting hole: 16*19mm
10. Adapt to DJI Sky Terminal/VISTA Sky Terminal
11. Adapt to GPS seat: BN-220
12. Adaptation antenna: Black Sheep 915/DJI Sky Antenna/SMA antenna
StrechX 258MM 5inch Frame
1. Wheelbase: 258mm
2. Structure: X-type split
3. Weight: 157G
4. Thickness: bottom plate 3.0mm, X plate 3.0mm, machine arm 5.0mm, other accessories 2.0mm
5. Propeller: 6.0 inch propeller
6. Flight control hole distance: 20*20mm, 30.5*30.5mm
7. The distance between the rear image transmission holes: 20*20mm, 30.5*30.5mm
8. Camera installation width: 20mm/23mm
9. Motor mounting hole: 16*19mm
10. Adapt to DJI Sky Terminal/VISTA Sky Terminal
11. Adapt to GPS seat: BN-220
12. Adaptation antenna: Black Sheep 915/DJI Sky Antenna/SMA antenna
StrechX 296MM 5inch Frame
1. Wheelbase: 296mm
2. Structure: X-type split
3. Weight: 164G
4. Thickness: bottom plate 3.0mm, X plate 3.0mm, machine arm 5.0mm, other accessories 2.0mm
5. Propeller: 7.0 inch propeller
6. Flight control hole distance: 20*20mm, 30.5*30.5mm
7. The distance between the rear image transmission holes: 20*20mm, 30.5*30.5mm
8. Camera installation width: 20mm/23mm
9. Motor mounting hole: 16*19mm
10. Adapt to DJI Sky Terminal/VISTA Sky Terminal
11. Adapt to GPS seat: BN-220
12. Adaptation antenna: Black Sheep 915/DJI Sky Antenna/SMA antenna
