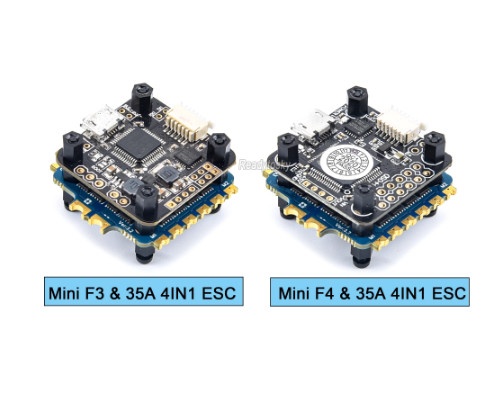

Cyclone BLS U 35A V2.1 4in1 ESC + Mini OSD F3 / F4 Flight Control 20x20mm for RC Drone FPV Racing Freestyle Toothpick Tinywhoop
35A ESC Product parameters:
■ Small cyclone separator BLS U 35A V2.1 2-6S 4-in-1 electronic stability control system
The newly developed BLHELI_ S 35A V2.14 in 1 miniature electronic stability control
High system integration, greatly reduced than standard size, excellent performance, support 6S,
The target is J-H-30. Support DSHOT, MULTISHOT, ONESHOT, etc.,
The pad is half-expanded, saving space and being durable. feature:
■ EFM8BB21F16G single chip microcomputer, fast remelting; increase capacitor to reduce power
Noise; electronic stability control system with BLHELI_ firmware
Support 2-6S voltage input, 4PWM input
Compact size 31 * 31MM, ultra light 6.1G
Support ONESHOT125, ONESHOT42, MULTISHOT,
DSHOT150, DSHOT300, DSHOT600
Specifications: MCU: EFM8BB21F16G, ammeter: yes input: 2-6SLIPO
Mounting holes: 20X20 MM, M2
Target: J-H-30
Conventional: 25 amps
Peak: 35 amps
Size: 31 * 31MM (including power cushion)
Mounting hole: 20 * 20MM
Flytower F3 Integrated OSD Mini Flight Control
■ Small cyclone separator BLS U 35A V2.1 2-6S 4-in-1 electronic stability control system
The newly developed BLHELI_ S 35A V2.14 in 1 miniature electronic stability control
High system integration, greatly reduced than standard size, excellent performance, support 6S,
The target is J-H-30. Support DSHOT, MULTISHOT, ONESHOT, etc.,
The pad is half-expanded, saving space and being durable. feature:
■ EFM8BB21F16G single chip microcomputer, fast remelting; increase capacitor to reduce power
Noise; electronic stability control system with BLHELI_ firmware
Support 2-6S voltage input, 4PWM input
Compact size 31 * 31MM, ultra light 6.1G
Support ONESHOT125, ONESHOT42, MULTISHOT,
DSHOT150, DSHOT300, DSHOT600
Specifications: MCU: EFM8BB21F16G, ammeter: yes input: 2-6SLIPO
Mounting holes: 20X20 MM, M2
Target: J-H-30
Conventional: 25 amps
Peak: 35 amps
Size: 31 * 31MM (including power cushion)
Mounting hole: 20 * 20MM
Flytower F3 Integrated OSD Mini Flight Control
Receiver configuration, when SBUS and DSM receiver input, please configure RX3 as the input interface.
The DSM receiver takes power from 3.3V.
The SBUS and PPM receivers take power from 5V.
Factory firmware: betaflight 3.1.0 OMNIBUS
First, equipped with MPU6000 F3 flight control acceleration faster response; integrated 5V 1A BEC, integrated OSD. (This version is 6DOF, no barometer and electronic compass)
1. This board provides all the features, weighs only 7.7g, fixed hole for the 20MM ( M2.5 hole );
2. For four-axis models tailored, built-in LC filter, support BF firmware;
3. Using STM32F3CCT6 single-chip 256K flash memory, MPU6000 sensor SPI interface connection, faster computing speed;
4. Support 2-4S power input;
5. Built-in 5V 1A output BEC;
