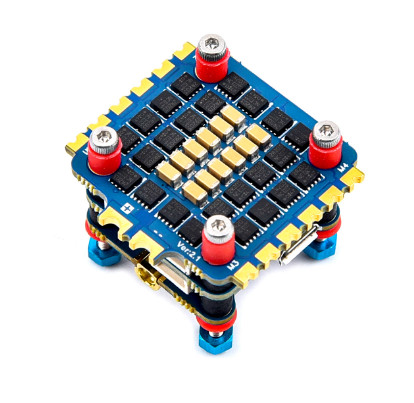

Cyclone Mini F405 F4 35A ESC 400mW VTX 2-6S Mini Stack 20mmx20mm for RC Drone FPV Racing Freestyle Toothpick Tinywhoop

■ Small cyclone separator BLS U 35AV2.1 2-6S 4-in-1 electronic stability control system
The newly developed BLHELI_ S 35A V2.14 in 1 miniature electronic stability control
High system integration, greatly reduced than standard size, excellent performance, support 6S,
The target is J-H-30. Support DSHOT, MULTISHOT, ONESHOT, etc.,
The pad is half-expanded, saving space and being durable. feature:
■ EFM8BB21F16G single chip microcomputer, fast remelting; increase capacitor to reduce power
Noise; electronic stability control system with BLHELI_ firmware
Support 2-6S voltage input, 4PWM input
Compact size 31 * 31MM, ultra light 6.1G
Support ONESHOT125, ONESHOT42, MULTISHOT,
DSHOT150, DSHOT300, DSHOT600
Specifications: MCU: EFM8BB21F16G, ammeter: yes input: 2-6SLIPO
Mounting holes: 20X20 MM, M2
Target: J-H-30
Conventional: 25 amps
Peak: 35 amps
Size: 31 * 31MM (including power cushion)
Mounting hole: 20 * 20MM

Features
Mini F4V2.1 Flying Tower 2-6S
Mini F4V2.1 flight control
The newly released MINI V2.1F4 flight control system has been optimized overall.
The main welding port is upgraded to a terminal plug, which is convenient for pilots to disassemble and assemble.
The F405 MUC with MPU6000 gyroscope is optimized,
To get better flight performance. Built-in programmable RGB LED interface,
Used for external LED to set LED color, function and status. Built-in OSD chip,
Monitor flight data status at any time, with intelligent audio function; Features:
With SUBUS, SUMH, SUMD, SPEKTUMU1024 /
2048, XBUS, PPM receiver, etc. compatible;
LED light bar signal output port, adjust LED light through FC
The color and flashing pattern of the bar;
Voltage / amp monitoring port, check battery voltage (VBAT + port)
And current (CRT port) (requires additional ammeter);
Buzzer output port allows to connect external buzzer to FC,
To warn or notify flight status;

XF5806 VTX 5.8G
Model: XF5806_ V2
Input voltage: 7-26V
Control protocol: TBS SmarAudio V2.
Onboard BEC output: 5V
Antenna connector: MMCX
Number of transmitting channels: 40
Wiring method: pad
Transmit power: 25/100/200 / 400mW
Mounting hole: 20 * 20
Video format: PAL / NTSC
