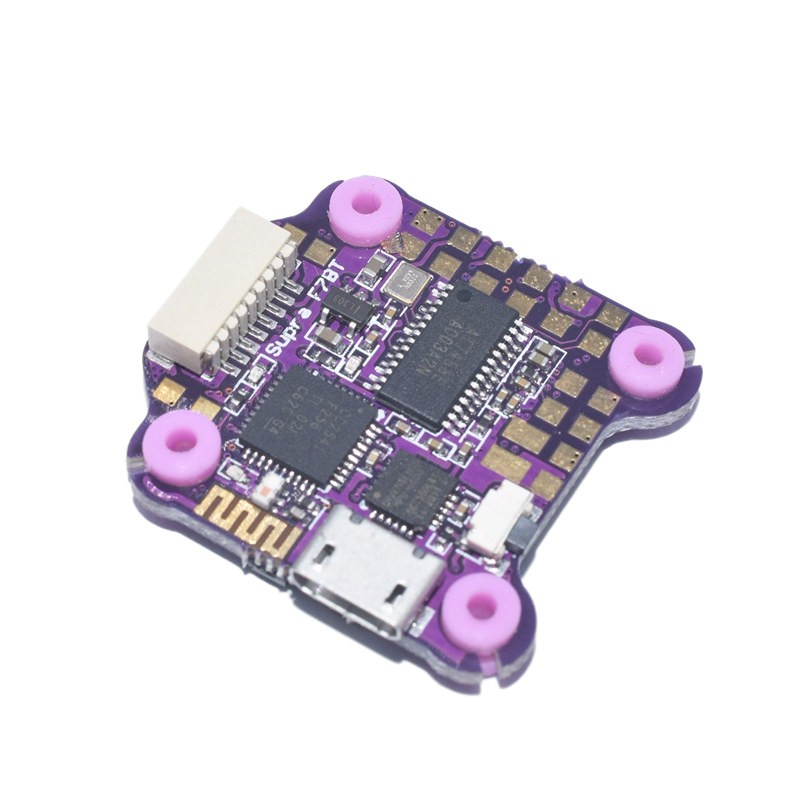

 The latest design Supra F7BT mini Bluetooth, mini 20x20mm pitch F7 flight control, using STM32F722RET6 high-performance processor, MPU6000 gyroscope. It also supports Bluetooth wireless tuning.

Integrated OSD, built-in 5V/2A (internal power supply, receiver, LED, BUZZER and other power supply), 9V/3A BEC (camera and image transmission mode power supply, its opening and closing can be controlled by USER2), two independent BEC work separately , Do not interfere with each other, optimized circuit design, high-performance hardware, to further ensure the powerful performance of flight control.

Rich and complete interface definition, 6-channel UART. In addition, the 8P 1.0MM socket is designed to facilitate the direct input of the plug line, connect with BLHELI 32-bit ESC, and support data return (RX1).

Integrated Bluetooth 4.0, support mobile phone APP Bluetooth wireless parameter adjustment, convenient for field optimization parameters, especially novices no longer worry about the driver.


Technical parameter:

Model: SupraF7BT

Main control chip: STM32F722RET6216MHz

Gyroscope: MPU6000 gyroscope (SPI)

Barometer: None

OSD chip: AT7456E

Black box: None

LED programming: support

BB sound: support

Input voltage: 2-6S

I2C interface: support

BEC-1: 5V/2A (internal power supply, receiver, LED, BUZZER, etc. power supply)

BEC-2: 9V/3A (camera and image transmission mode power supply, its opening and closing can be controlled by USER2, turn on the power when selected, the shipment is fully open by default, please configure the channel control switch by yourself)

Serial control port: six channels (UART1, UART2, UART3, UART4, UART5, UART6)

Bluetooth: support (port UART4, baud rate 115200, name Supra)

Flight control firmware: Betaflight

Goal: JHEF7DUAL.HEX

Conversion of hole position and shock-absorbing ball hole position: 20*20mm, φ3mm

Flight control size: 30*27mm

Weight: 8g
