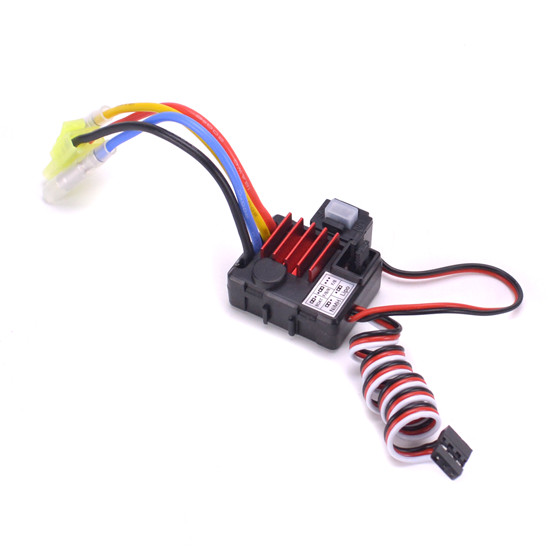

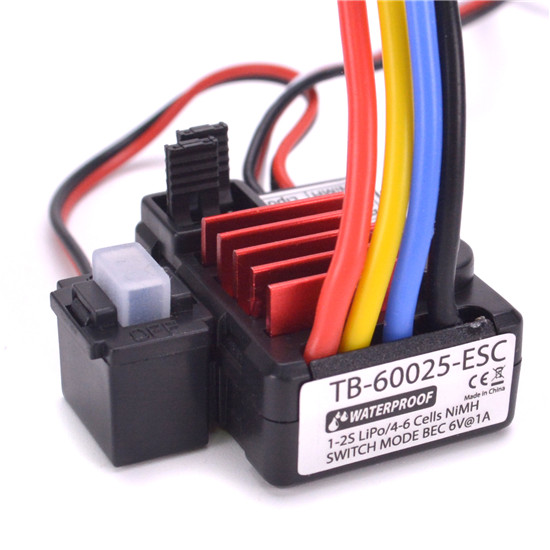

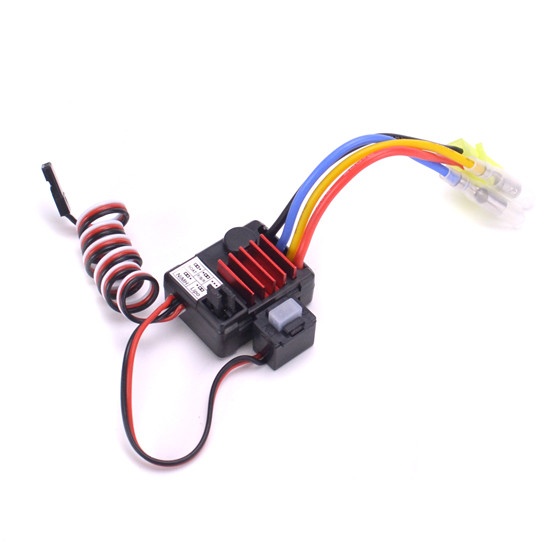

Turbo Racing Waterproof 25A TB-60025 ESC Brushed Speed Controller 1A / 6V BEC for 1/8 RC Car truck
Turbo Racing Waterproof 25A TB-60025 ESC Brushed Speed Controller 1A / 6V BEC for 1/8 RC Car truck
Product specifications
• One-piece design (built-in electrolytic capacitor), completely waterproof and dustproof, adapt to various climates;
• It has three modes of operation: “ship mode/bidirectional/climbing”, which is suitable for various models;
• High quality materials with strong current withstand capability;
• Powerful BEC output capability;
• Automatic throttle stroke calibration, easy to use, especially suitable for novices;

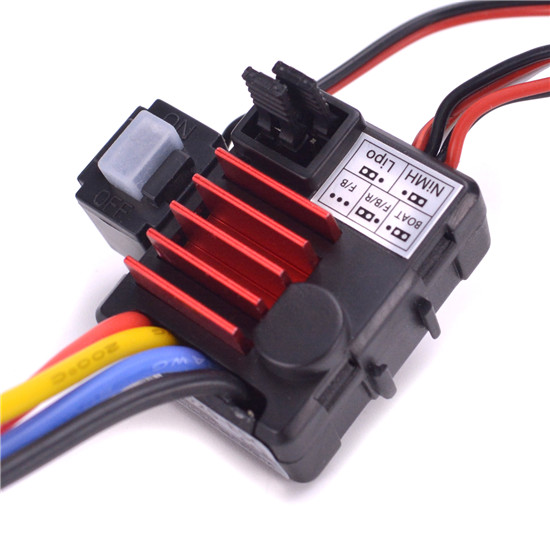

• Use the jumper cap to set the ESC parameters, which is simple and clear;
• With lithium battery low voltage protection; over temperature protection, etc., multiple protection functions.
Model TB-60025
Forward: Continuous current / peak current 25A/100A
Reverse: Continuous current / peak current 25A/100A
Supported voltage range: 1-2 lithium battery (Lipo) or 4-6 nickel-metal hydride (NiMH) battery
Mainly applicable models: 1/18 and 1/24: electric room, electric power, big truck, truck
Support motor T number:
1 lithium battery (1S only supports lithium) 030, 050, 280 size motor RPM is lower than 300007.2V
2 lithium batteries or 6 nickel-metal hydride: 280, 370 or 380 size motor RPM is less than 300007.2V
Internal resistance (single bridge arm): Forward rotation: 0.003Ω, reverse rotation: 0.003Ω
BEC output: 1A / 6V (linear regulator mode)
Size / Weight 32.2x25.3x16.9mm / 23.5 grams
Operating mode: ship mode / two-way / climbing
