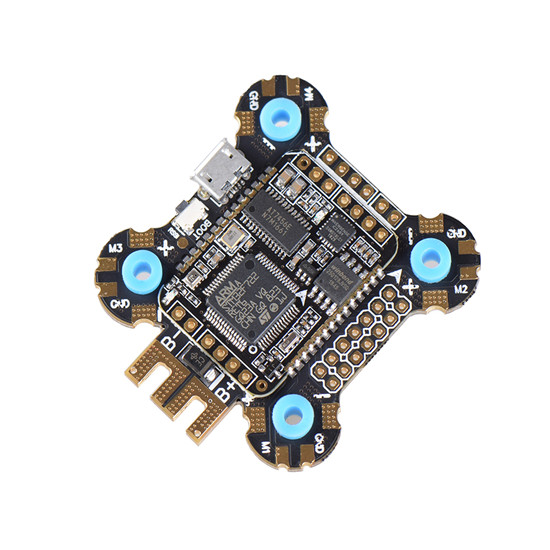

JHE F722 F7 STM32F722 Flight Controller Built-in OSD BMP280 Barometer BEC 5V for RC FPV QAV-R PUDA 220 220mm Freestyle 250mm
JHE F722 F7 STM32F722 Flight Controller Built-in OSD BMP280 Barometer BEC 5V for RC FPV QAV-R PUDA 220 220mm Freestyle 250mm
Specification:
STM32F722, ICM20689, BMP280, OSD, W25Q128, 5x UARTs, 6x DShot, PDB, Current Sensor, BEC 5V,
MCU: 216MHz STM32F722RET6
IMU: ICM20689(32K), SPI
Baro: BMP280 (I2C)
OSD: AT7456E (SPI)
Blackbox: W225Q128(16MB)
5x Uarts (1,2,3,4,6) with build-in inversion
6x Dshot/Proshot/oneshot outputs
1x I2C
RX6 pad(one per cornet) for BLheli32 ESC telemetry
4x individual ESC power/signal pads
1x Group of GND/S1/S2/S3/S4 pads for 4in1 ESC Signal/GND
+5V filtered output power for VTX
switchable via AUX (modes tab-user1/user2)
Smartaudio & Tramp VTX protocol: Yes
WS2812 Led Strip : Yes
Beeper : Yes
RSSI: Yes
PDB Specifications
Input: 7.4~26V (2~6S LiPo) w/TVS protection
PDB: 4x40A (Max.4x50A)
BEC: 5V 2A cont. (Max.3A)
LDO 3.3V: Max.300mA
FC Firmware: BetaFlight
Target: JHEF7DUAL.hex
Physical
Mounting: 30.5 x 30.5mm, Φ4mm with Grommets Φ3mm
Dimensions: 45*49mm
Weight: 12.8g
M3(BLUE) Silicon grommets included
1000UF/25V & 470UF/25V Capacitor
GND:Ground
+5V:BEC 5V 2A cont.MAX.3A
3.3V:LDO3.3V,MAX.300MA
VBAT+: share Lipo power
B+(+) B-(-): LiPO&ESC Power pads 7.4V-26V(2-6S)
S1,S2,S3,S4,S5,S6:ESC Signal
IO1,IO2:Switch pin IO(ON/OFF,Modes tab/USER1/USER2)
VOUT:Video output for video Transmitter
VIN:Camera Video input
BUZ+ BUZ-:General active 5V buzzer for dbuz 5V
RSSI:Receiver RSSI INPUT
LED_Strip:WS2812 LED signal
SCL & SDA: I2C_SCL & I2C_SDA
RX1 & TX1: UART1
RX2 & TX2: UART2(RC Receiver,SBUS,IBUS,DSM,/ PPM share RX2 pad)
RX3 & TX3: UART3
RX4 & TX4: UART4
RX6 & TX6: UART6
Package included:
1 x JHE F7 Flight controller board
4 x silicon grommets M3
1 x 25V/470uF Capacitor
1 x 25V/1000uF Capacitor
